Orphek Aquarium LED Lighting

Aquarium LED Lighting

Amazonas 500 Watt LED Lighting

Amazonas 500 Watt Public Aquarium LED Light Up to 72,000 Lumens

Designed as a direct replacement for metal halide systems 1,000 watts and over, the Orphek Amazonas is the perfect LED solution for very deep coral reef aquariums or large freshwater displays. The Amazonas has a 360° three dimensional heat dissipation providing the optimal thermal solution for heat management.

Orphek Amazonas 500 Watt LED is the most Powerful LED Aquarium Light, delivering more than sufficient light for viewing at depths over 15 meters.

The primary design goal targeted commercial installations, zoos and public aquariums. Utilizing state of the art components combined with Orphek’s ability to target the exact spectrum that photosynthetic creatures require, the Amazonas delivers significant light penetration and plenty of coverage which allows for direct 1 to 1 replacement for large older technology inefficient lighting systems.

Public-Aquarium-LED-lighting-Amazonas-500w

Deep water systems

Whether you are lighting large lagoons or a 15 meter deep coral reef tank, the Amazonas can deliver results. It has the ability to penetrate and deliver more than sufficient light for viewing at depths over 15 meters. High efficiency is evident in the excellent lumen/watt ratio which will provide life sustaining light at depths up to 15 meters. Installations can now run cooler and maintenance is reduced allowing your staff to focus more on livestock and husbandry.

LED_light_cairns__ublic_aquarium_ orphek_amazonas_LED aquarium_light cairns_aquarium_LED_aquarium_lighting

By launching groundbreaking technologies Orphek gained respect and recognition as a leader in Aquarium lighting technology and innovation for reef aquariums lights. So we did it again! Our newest AMAZONAS 500 Watt LED is totally designed for commercial installations, zoos and public aquariums growing SPS corals up to 20 foot deep.

Jake Adams reefbuilders.com– Orphek Introduces 500 Watt Amazonas LED With Cool Tech Inside

“upon a time we were happy with aquarium LED lights that offered around $10 per watts of power but now we’re firmly in the realm of $3 per watt.”

Orphek has a couple new lights to show off, and one of them is a big honkin’ reef light. The Orphek Amazonas is a 500 watt LED spotlight which could easily be mistaken for just another commercial LED light.

However, unlike the massive multichip fixtures we’ve seen with one big common relfector, the Amazonas sports sixty reflectors, each with a unique four-stack of unusual looking little diodes. The neatly separated mini LEDs are made by a company that specializes in making high power, low cost high capacity LED lights, resulting in a very bright and efficient LED package.

Orphek Amazonas 500w LED Light Production

FEATURES

CHECK AMAZONAS 500 Watt LED VERSATILITY!

  • Available in many Kelvin temperatures and custom spectrums
  • 3 Aluminum Reflection Cups
  • 3 Acrylic Lens Options
  • Easy maintenance & washable
  • Both Indoor/outdoor use
  • The Amazonas has a 360° three dimensional heat dissipation providing the optimal thermal solution for heat management.
  • Available with none dimming or dimming Mean Well LED driver.
  • Integrates with Neptune Apex controller, Reefkeeper, and other digital controllers capable of 10VDC or PWM operation

360° three dimensional heat dissipation

PROGRAM

CHECK WHAT IT CAN DO FOR YOU!

By utilizing state of the art components combined with Orphek’s unique ability to target the exact spectrum that photosynthetic life requires, the Amazonas 500 can deliver significant light penetration and plenty of coverage, which allows for direct 1 to 1 replacement for large older technology inefficient 1,000 watt lighting systems.

Programming: Two channel system offers greater flexibility with DAY and MOON Light.

LEDS & LENS

  • Three watt high tech flip-chip LEDs run at a cool two watts
  • 240 flip-chip LEDs – 120 LEDs per channel
  • Aluminum Reflection Cup: 15/36/60 degrees
  • Acrylic Lens Options: 5/12/24/36/60 degrees

CHECK THE PDF TO READ MORE ABOUT OUR LEDS

Orphek Amazonas 500 With New HighTechnology FlipChip LEDS PDF

orphek_new-_flip_led_technology

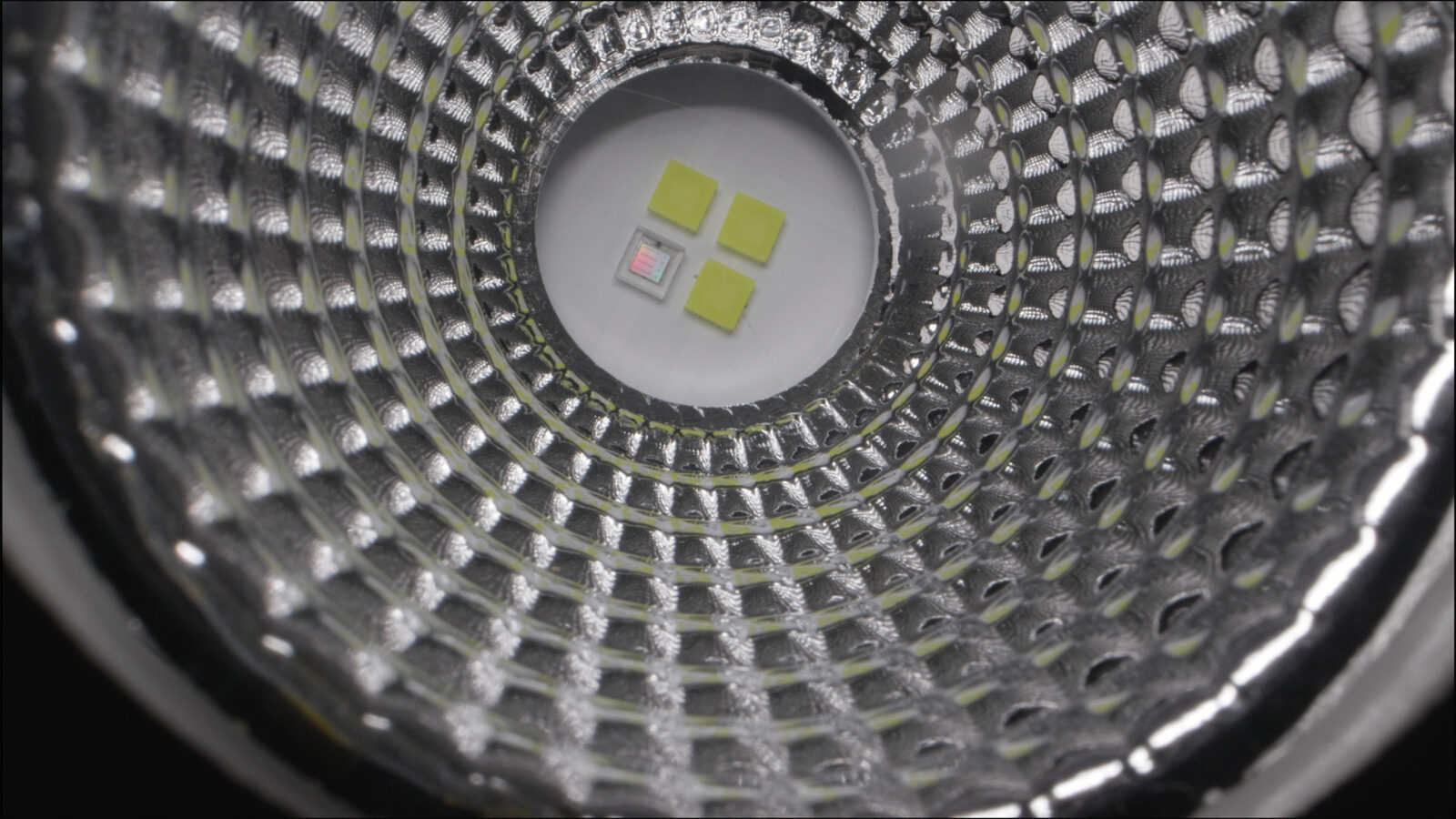

Example of : LED layout  with 4 in 1 LED flip chips

amazonas-500-led-ratio-map
Example Of the AL reflector and Acrylic Lens.

reflector-cup-with-acrylic-lens-for-amazonas-500

SPECTRUM & EFFICIENCY

CHECK THE SPECTRUM FOR OPTIMAL CORAL BEAUTY, GROWTH, COLOR & HEALTH!

Whether your facility is lighting large lagoons or a 15 meter deep coral reef tank, the Amazonas 500 Watt can deliver the results you need. It has the ability to penetrate and deliver more than sufficient light for viewing at depths over 15 meters. With a power factor rating of 0.980, high efficiency is evident in the excellent lumen/watt ratio, which will provide life sustaining light at depths up to 15 meters and offers the highest lumens per dollar of any LED light available.

“In my experience, for most practical purposes PAR values of about 60-80 micromoles/m2/sec at the bottom of the tank are usually an indicator of adequate light to keep most of the higher light loving SPS “  Dr. Sanjay Joshi

BUT WHAT ABOUT PAR MEASURES?

CHECK THE AMAZONAS 500 WATT LED 15 DEGREE PAR TEST!
  • 13 foot – 4 M :   170 PAR avg          center 220  1 M diameter 120 PAR
  • 16 foot – 5 M:    120 PAR  avg         center:150  1 M diameter 100 PAR
  • 20 foot – 6 M:     90  PAR  avg         center 110    1 M diameter   80 PAR

CHECK THE AMAZONAS 500 WATT LED  LUX RATING – Blue LED !

Orphek Amazonas product IES LUX CURVE



orphek-amazonas-500-high-lux-power-led

AL reflector cup 15 degree:  1m – 6m

amazonas-500-ies-test-report-with-al-reflector-cup-15-degree-1m-10m

AL reflector cup 15 degree: 6m to 20m

AL reflector cup 15 degree 6m to 20m

AL reflector cup 60 degree: 1m to 6m

AL reflector cup 60 degree

NO reflector cup

NO reflector cup





For better understand the graph:

  • Minimum difference in Lux from center to outer beam angle
  • Left numbers taken at center of  beam angle
  • Right numbers taken at Edge of beam angle)

BUT WHAT ABOUT LUX MEASURES?

Click on the PDFs link below for complete LUX test report:

amazonas-500-ies-test-report-without-lens-6-20m

amazonas-500-ies-test-report-with-al-reflector-cup-15-degree-6m-20m

amazonas-500-ies-test-report-with-al-reflector-cup-15-degree-1m-10m

amazonas-500-ies-test-report-with-acrylic-lens-60-degree-6m-20m

IS IT REALLY COOL?

YES! Our 360° three dimensional heat dissipation Aluminum anodized body with powder coat finish provides optimum thermal solution for heat management! Installations can now run cooler and maintenance reduced which allows your staff to focus more on livestock and husbandry.

orphek-amazonas-500w-360-three-dimensional-heat-dissipation

CHECK THE THERMAL REPORT!

thermal-imaging-test-report-for-amazonas-500

DO YOU NEED MORE INFORMATION BEFORE PURCHASING?

Here you can have all the specifications:

Orphek-Amazonas-specifications

AMAZONAS 500 Watts LED Operational & Safety Guide

Amazonas 500 product catalog

Amazonas driver HLG-240H-SPEC

CAN I WATCH/READ REVIEWS OF THE PRODUCT?

Read more at reefbuilders.com: New Orphek Amazonas 500 impresses with new test data

Read more at reefbuilders.com: Orphek Introduces 500 Watt Amazonas LED With Cool Tech Inside

*PAR Test and more other Information will be available soon.

I WANT TO BUY IT, HOW CAN I PLACE AN ORDER?

Please email contact@orphek.com
