Orphek OR4 iCon Sun & Moon Sync Reef & Freshwater Aquarium LED Bars Series

orphek_or4_reef_aquarium_led bars_icon_dim

Orphek OR4 iCon

Sun & Moon Sync Reef & Freshwater Aquarium LED Bars

We are upgrading our Orphek LED Bars to its forth generation and launching a mind-blowing product line just for you! OR4 iCon LED Bar series is the newest & most advanced line of Reef & Planted Aquarium LED Bars developed and engineered by Orphek with proprietary iCon cutting edge technology.

Contact us
read more

Features

  • New! Groundbreaking Sun & Moon Synchronization.
  • New! iCon technology that allows you to program, control, monitor and dim your OR4 Reef Aquarium LED Bars and integrate them with all other Orphek iCon LED solutions.
  • New! Game-changing Orphek 6 watt Mixed Colors Dual-Chip Power LEDs. /New proprietary reflectors.
  • New! Unmatched 10,000% dimming control technology.
  • New! The all-in-one groundbreaking Orphek power supply – Orphek customized dim power supply (most advanced technology /best electricity transfer & stability).
  • New! Incredible new Orphek App compatible with both IOS and Android/ Wi-Fi / Bluetooth – with iCloud support, internet connectivity, high speed response, extra data security free of charge.
  • New! Combine 6x OR4 iCon LED Bars with Osix and create your own fixture or combine them with other Orphek iCon solutions.

More Features

  • The jaw-dropping spectrums ever achieved.
  • Maximum photochemical efficiency & blending perfection.
  • Safe maintenance with Plug & Play technology: Top opening capacity for lens adjustment and LEDs substitution, without loosing its waterproof protection.
  • Built-in programs including Sun & Moon Sync, Helius, Moon cycle, Coral acclimation, Clouds with additional awesome features for jellyfish and public aquariums.
  • Exceptional durability – An IP67 certificated LED BAR made of high quality anti-rust/anti-corrosion anodized silver aluminum alloy, 8mm acrylic top cover and silicon gasket, excelling in performance even in extreme humid environments, salinity, and complete protection against ingress of dust and airborne particles.
  • New improved heatsink for better thermal flow and durability.
  • Orphek proprietary customized IP67 power supply including Waterproof connectors/ Waterproof power extension cord free of charge.
  • Cables made of steel (hanging kit) free of charge/ Free customized electric plug for your region.
  • Compatibility with all Orphek iCon lighting solutions, including Natura iCon, Atlantik iCon, Atlantik iCon Compact and OSix Smart Controller.
or4_led_bars_reef_aquarium_orphek

Applications:

  • SPS/LPS coral growth, color and illumination.
  • Reef salted water tanks/ Planted freshwater aquariums.
  • Designed to enhance beauty of both natural and synthetic compositions.
  • Replace T5/T8 lighting technology for aquariums.
  • Public venues / Private aquariums.
  • Indoors/ opened or closed areas or canopies, such as gallery displays.
  • Perfect for coral shops, coral farming, educational facilities, research centers, nurseries, refugium.
  • Perfect for mangrove and seagrass research and farming.

Best for:

  • Achievement of your desired light spectrum.
  • Customization – Create your own light fixture by choosing up to 6 LED Bars.
  • Supplemental light coverage.
  • Boost of coral color pop, health & growth.
  • Boost fluorescent color.
  • Boost photosynthesis.
  • Perfect for coral spawning; micro/macro-biology and biological clock correction; and stabilization.

orphek-icon-app

iCon App Features Included!

The incredible Orphek App is Android & iOS compatible, free of charge with high speed response.

discover
orphek-atlantik-app-store
google-play-store-orphek


Sun Moon Synchronization

OR4 iCon LED Bars come with a revolutionary new feature for Sun and Moon cycles by enabling the synchronization of both cycles with the real local timing throughout the year, reproducing Nature at its fullest and bringing you an authenticity never reached before by any other brand!

Read More

The Game Changer

Orphek groundbreaking 10,000% dimming and 24h programming technology for coral health, growth and color, spawning and biological clock correction, while getting the best spectrum.

Day Light – Helius

Dimming range 1 – 100%

Learn more >

helius icon program

Moon Cycle – Lunar

Dimming range 0.06 – 1%

Learn more >

icon moon cycle

Program From Any Place In The World

Built-in long range wireless antenna, remote and local control and monitoring. This advanced technology combine 3 in 1: Wi-Fi / Bluetooth / Hotspot Sharing. Plus Cloud Support and Firmware / Program Automatic Update.

orphek osix icon connect

OR4 iCon LED Bars Offers You

  • A possibility of customization never seen before!
  • A connectivity never seen before!
  • LEDs so advanced that leaves all others miles behind!
  • A boost of coral color, health & growth/ fluorescent color & photosynthesis never seen before!
  • Extraordinary photochemical efficiency & blending perfection with zero light spillage never seen before!
  • Unmatched dimming control technology that all Orphek iCon solutions renders and other brands don’t!
  • Exceptional durability that other brands don’t have!
  • App, Extension Cord, Connectors, Plugs and Mounting Kit with no extra cost – YES! THEY ARE FREE OF CHARGE!

New Orphek LED Technology

Orphek is the first and only company in the reef LED lighting market to design each 6 watt Dual-Chip LED with 2 different mixed LED nm colors, creating this revolutionary technology that enhances the spectrum output, resulting in improved coral health, growth and coloration & LED durability.


Orphek New Customized Reflector Technology

Best Beam width & efficiency – OR4 iCon Reef & Freshwater Aquarium LED Bars iCon unveils the latest advancement in light control with Orphek’s newest proprietary 70° reflectors for peak efficiency and beam precision. Achieve superior PAR coverage, focused light distribution for thriving corals, and zero spillage outside the tank, elevating your aquarium experience with unmatched precision.

Orphek_6w_mixed_color_dual_chip_LED_470nm_480nm
orphek-or4-icon-led-bar-best-coral-color-pop

Fall in Love

Pushing the boundaries, Orphek developed and engineered a sophisticated technology, converting what could be one more LED Bar in the market into a groundbreaking LED lighting Bar with advanced technologies never seen before. Our newest OR4 iCon LED Bars come with a groundbreaking Orphek proprietary new technology for power supplies – The all-in-one Groundbreaking Power Supply!


The All-in-One Groundbreaking Power Supply

A driver that comes with Orphek’s iCon Technology (the most Advanced & fastest Intelligent connectivity – Wi-Fi / Bluetooth, 5G internet connectivity/ high speed response/ Built- in wireless worldwide remote and local programming, control and monitoring via App.) combined with Orphek’s 10,000% Dimming Control Technology.

orphek_icon_dim_driver_or4

orphek_or4_blue_plus
orphek_or4_blue_sky
orphek or4 uv violet
orphek_or4_reef_day
orphek_or4_freshwater_planted
orphek_or4_red_plus

Our OR4 iCon LED Bars Available are:

  • OR4 iCon Blue Plus – Widest Fluorescent Pop – Blue/Violet Spectrum Range: 380-500 nm
  • The OR4 iCon Blue Plus: The perfect all-around blue for any reef tank! This bar brings out vibrant fluorescent colors in corals, striking the ideal balance for stunning results. It’s the “wide pop” you’ve been looking for! (380-500 nm)
  • OR4 iCon Blue Sky – Strongest Fluorescent Pop – Blue/Blue Sky/Blue Ice – Spectrum Range: 440-500 nm
  • The OR4 iCon Blue Sky: The secret to a natural-looking reef with intense color pop! Its unique blend of blue, blue sky, and ice blue (440-500nm) not only maximizes fluorescence but also balances the spectrum by softening dark blues and bringing your tank closer to the natural 480nm ocean spectrum.
  • OR4 iCon UV/Violet – Actinic Fluorescent Pop – UV/Violet – Spectrum Range: 360-440 nm
  • Looking for that extra edge? The OR4 iCon UV/Violet reveals hidden fluorescent colors in corals with its unique UV and Violet spectrum (360-440nm). Designed for advanced reefers who want to push the boundaries of color and vibrancy in their tanks.
  • OR4 iCon Reef Day Plus – 18,000K Full Spectrum – Spectrum Range: 390-680 nm
  • Natural color meets vibrant pop! The OR4 30 Reef Day Plus brings out the best in your corals with its full-spectrum light and crisp white output
  • OR4 iCon Red Plus Grow & Refugium, Mangroves and Seagrass – Widest Orange/Red/Infrared – Spectrum Range: 520-740 nm
  • The OR4 iCon Red Plus Grow features a right and most advanced spectrum created using unique mix color leds such infra red and red. This is the ultimate lighting solution for refugiums, mangroves, and seagrass!
  • OR4 iCon Freshwater Planted – 7,000K White Full Natural Daylight – Spectrum Range: 400-700 nm
  • Give your freshwater plants the light they deserve! The OR4 iCon Freshwater Planted delivers a complete 7,000K full natural daylight spectrum (400-700 nm), with a unique LED mix designed for optimal growth and stunning color.

Ratio Map

Orphek or4 blue plus ratio map
orphek or4 uv violet ratio map
orphek or4 red plus ratio map
Orphek or4 freshwater planted ratio map

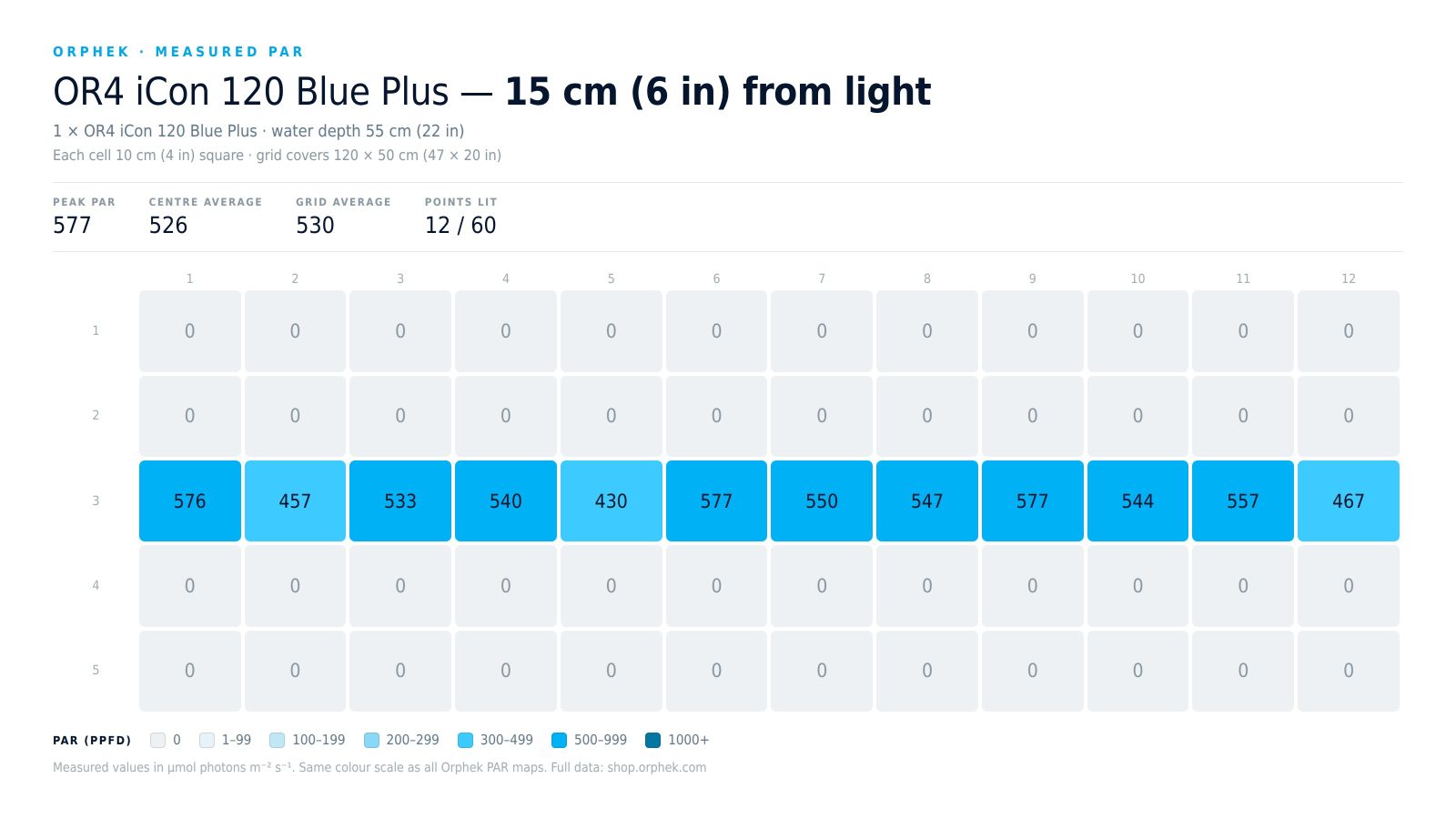

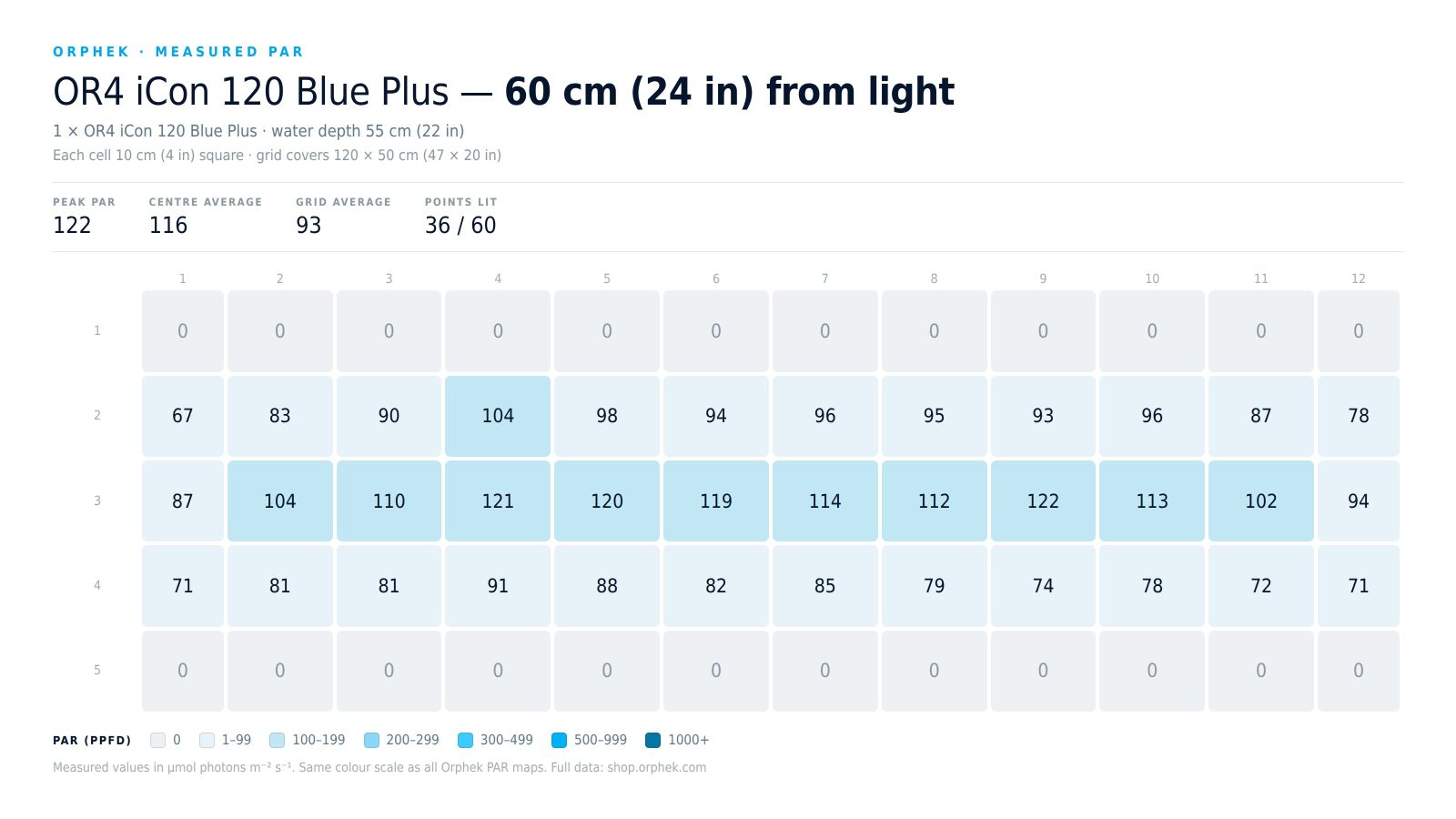

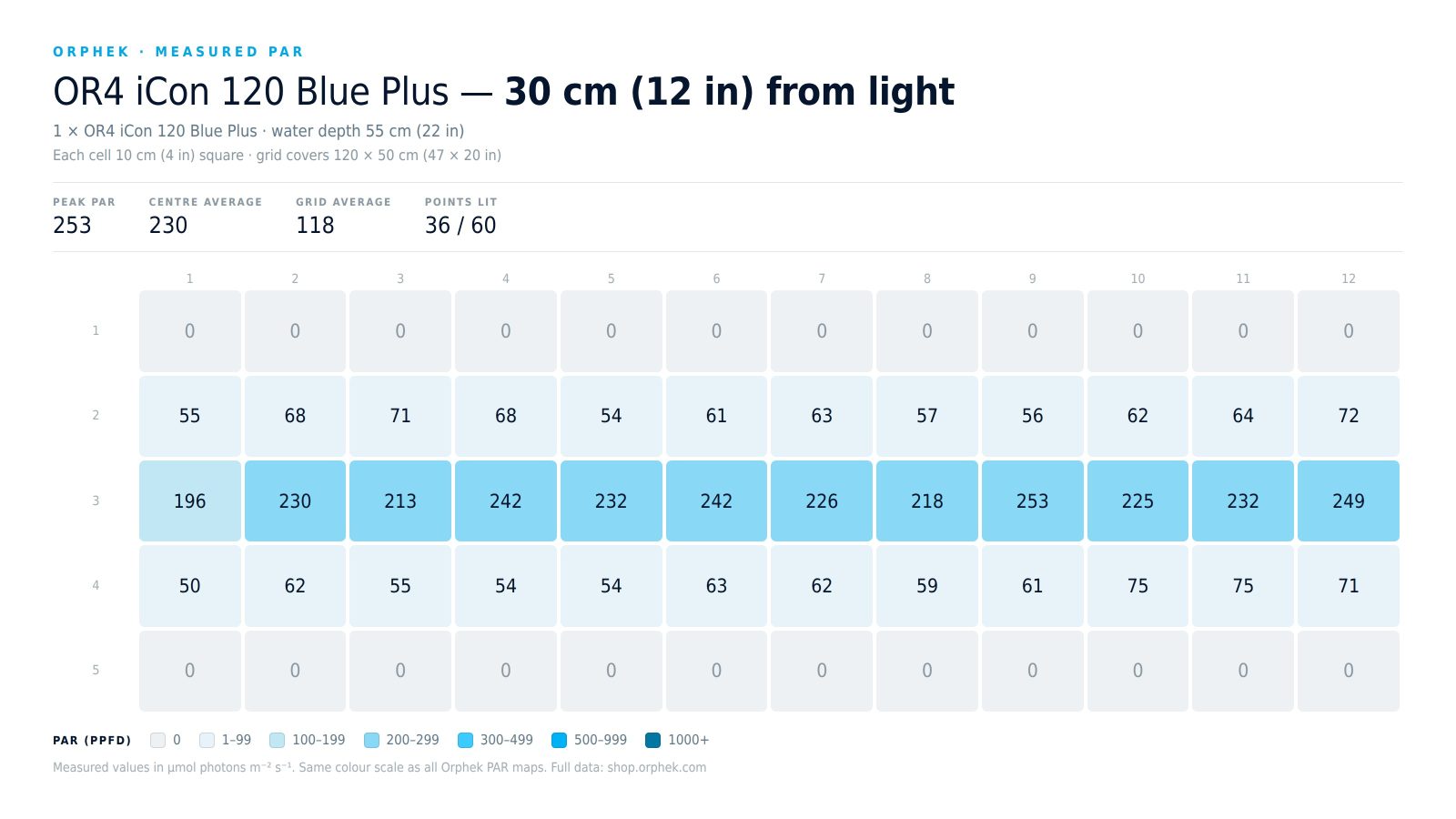

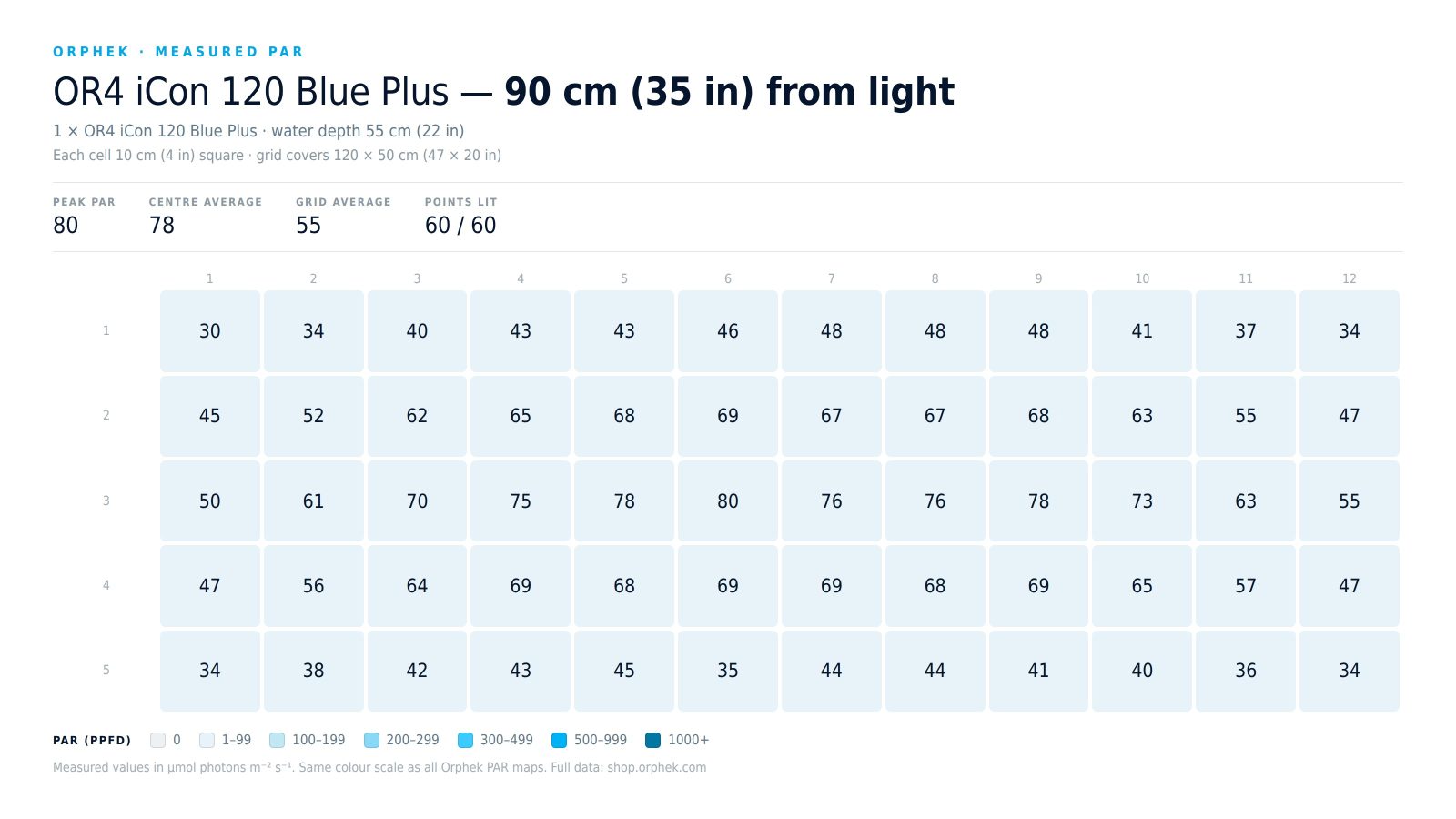

PAR Maps

Superior PAR coverage & light distribution for thriving corals, with zero spillage outside the tank!


Spectrums

orphek or4 blue plus spectrum 2
orphek or4 uv violet spectrum 2
orphek or4 reef day plus spectrum
orphek or4 red plus spectrum
orphek or4 freshwater planted spectrum

Orphek OR4 iCon led bars

Exceptional Durability

OR4 iCon Reef & Freshwater Aquarium LED Bars are made of acrylic and high quality anti-rust/anti-corrosion anodized aluminum alloy.

This anodizing process artificially changes the structure of aluminum oxide on the surface of the metal, therefore it provides a surface finish that is more durable, stain-resistant, and corrosion-resistant.

and more…

Orphek relies only on companies supplying high quality components and Mean Well is the leading brand known for producing the finest quality LED drivers. OR4 iCon LED Bars come with Mean Well driver with an IP67 rating.


orphek or4 led lighting bar reef aquarium

Choose Them. Light Them. Be Amazed.


SHOP NOW!

Buy Now

orphek-best-reef-aquarium-led-bar
orphek-aquarium-led-lighting-or4-icon-led-bars
orphek-aquarium-led-lighting-or4-icon

What comes with your OR4 iCon LED Bars:

Power supply

Extension cord

Waterproof connector

Region appropriate plug

Hanging kit with 2 mounting options – 2 mounting brackets / 2 wire hanging cables assembly (*scroll down for more options)

OR4_Reef_Aquarium_LED_Bars_Parts

OR4 iCon LED Bars Specifications

Cords Length
Power Extension Cord with waterproof connector from light unit to Power Box: total 59˝ (1.5m)
Power Cord: 59˝(1.5m)

Hanging Kit Length
1 steel cable: 10.23˝ (260mm)


Electrical Information

OR4 30OR4 60OR4 90OR4 120OR4 150
Power Consumption15W30W40W60W75W
Input VoltageAC 100V-230VAC 100V-230VAC 100V-230VAC 100V-230VAC 100V-230V
Frequency50 – 60Hz50 – 60Hz50 – 60Hz50 – 60Hz50 – 60Hz
Power Factor95%95%95%95%95%
Input Voltage /
Current
AC 110V/0.2A /
220V/0.1A
AC 110V/0.28A /
220V/0.14A
AC 110V/0.37A /
220V/0.18A
AC 110V/0.56A /
220V/0.27A
AC 110V/0.64A /
220V/0.32A
Output Voltage / CurrentDC 20-30V/0.5A DC 40-58V/0.5ADC 24-40V/1ADC 40-58V/1ADC 26-50V/1.5A

Size Chart (Connector included)

OR4 30OR4 60OR4 90OR4 120OR4 150
Length33.5cm / 13.12″63.5cm / 25″93.5cm / 36.8″123.5cm / 48.6″153.5cm / 60.4″
Width5cm / 1.97″5cm / 1.97″5cm / 1.97″5cm / 1.97″5cm / 1.97″
Height3.6cm / 1.4″3.6cm / 1.4″3.6cm / 1.4″3.6cm / 1.4″3.6cm / 1.4″
Net Weight1.1kg / 2.43lbs1.9kg / 4.19lbs2.3kg / 5.07lbs2.8kg / 6.17lbs3.4kg / 7.50lbs

Package Size Chart

OR4 30OR4 60OR4 90OR4 120OR4 150
Length48.5cm / 19.09″69.0cm / 27.17″98.0cm / 38.58″128.0cm / 50.39″155.0cm / 61.02″
Width10cm / 3.94″12.0cm / 4.72″12.0cm / 4.72″12.0cm / 4.72″12.0cm / 4.72″
Height9cm / 3.54″9.0cm / 3.54″9.0cm / 3.54″9.0cm / 3.54″9.0cm / 3.54″
Gross Weight
(OR4 + Package)
1.6kg / 3.53lbs2.3kg / 5.07lbs2.9kg / 6.39lbs3.5kg / 7.72lbs4.1kg / 9.04lbs
